美國UVP公司UVLS-26手持式紫外線燈雙波長組合
UVLS-26手持式紫外線燈為6瓦，長波365nm和短波254nm的雙波長組合，2UV紫外燈。
金屬外殼，EL手持紫外燈有單個波長和多種波長組合可選擇。

主要特點：
從各種波長的選擇：
? 具有4W，6W或8W的選擇。
? 可選擇的型號包括254nm的短波，365nm的長波或短波和長波的雙波長紫外組合。
? 可提供一個紫外光和一個白光的組合配置，被照射的材料在光線昏暗的區域時，可使用白光照明觀察。
? 雙燈管模式可以選擇一樣的波長或兩種不同的波長。
? 只有8W的紫外燈可選擇三種波長，UVLMS-38三波長于一體，可切換三種波長（長波，中波和短波）為滿足你的測試需要。
? EL手持燈是重量輕，易于手持或結合支架免提操作。內置反射板，增強紫外強度。

產品規格：
? 功率：6W
? 波長：2UV；長波365nm和短波254nm
? 外殼：金屬外殼，有粉末涂層
? 線長：2.5米
? 尺寸：302×96×64mm
? 燈架（選購）：273x330x76mm

型號

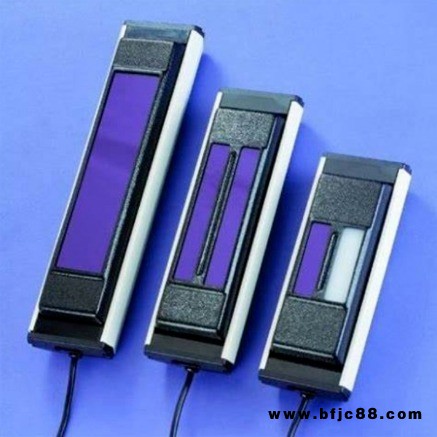

EL Series UV Lamps
Manufactured with a durable, extruded metal housing and scratch resistant powder paint. Select from a large range of lamps with single or multiple wavelengths and watts.

Applications
Laboratory
Inspection
UV Applications Notes
UV Application List

Main Features
Select from a variety of wavelengths:
Select from lamps with four, six or eight watts.
Models available include 254nm shortwave, 365nm longwave or a combination UV wavelengths or UV and white light versions.
Basic configuration offers one UV and one white light tube -- the advantage of white light or UV illumination from one unit! Use white light when working with materials in a dimly-lit area.
Twin models have two tubes of the same wavelength or the 2UV? Models use two different wavelengths.
The 3UV? Model available only in the eight watt lamp, gives three UV wavelengths in one lamp! No other lamp offers this versatility. Easily switch among the three wavelengths (longwave, shortwave and midrange UV) as your application requires.
Rugged design is excellent for high usage. The lamps are lightweight for easy holding or place the lamp in the stand or cabinet for hands free operation. The built-in reflector enhances UV illumination.

Specifications
Watts:
4, 6 or 8 watt
Light Sources:
254nm, 302nm, 365nm, White
(refer to Part numbers for details on wavelengths for each lamp)
Housing:
metal housing with scratch resistant powder coat
Cord length:
8 ft.
Dimensions:
4 Watt EL Lamps:
9.8L x 3.8W x 2.5D in. (249 x 97 x 64mm)
6 Watt EL Lamps:
12L x 3.8W x 2.5D in. (302 x 96 x 64mm)
8 Watt EL Lamps:
14.8L x 3.8W x 2.5D in. (376 x 96 x 64mm)
Lamp Stand:
10.74H x 13L x 3W in. (273 x 330 x 76mm)

Options
Optional cabinets reduce ambient light provide darkroom conditions and optimum viewing conditions for fluorescence of materials. Refer to the Cabinets page for product features and ordering information.
Use the C-10E4 cabinet with the four watt EL Lamps
Use the C-10E6 Cabinet with the six watt EL Lamps
Use the C-65 cabinet with one or two of the eight watt EL Lamps
Optional J-138 lamp stand (part number 18-0063-01) can be used with any of the EL Series Lamps for hands- free operation of the lamp. The lamp easily slips in and out of the lamp as needed.
UV blocking eyewear

Ordering Information
