是否有現貨：	是	認證：	CE RoHS CB
電路結構：	常規變壓器降壓	驅動方式：	恒流式
型號：	Hm-lp501	規格：	LED低壓應急電源
商標：	鴻蒙	包裝：	中性包裝
專利分類：	LED低壓應急電源	專利號：	LED低壓應急電源
產量：	1

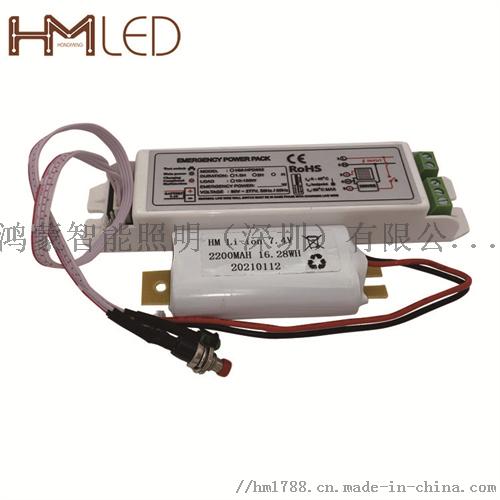

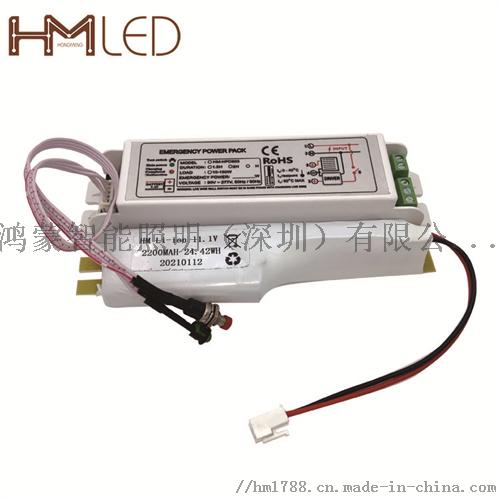

LED低壓應急電源AC12-36V低壓燈具應急驅動基本介紹 5-50W低壓燈具輸入電壓DC/AC12-36V應急5W90-180分鐘

技術參數

Technical data

輸入電壓AC12-36V 50-60Hz

Input rated voltage:AC12-36V 50-60Hz

額定充電功率 5W

AC Input power rated 5W max

功率因素：>0.5

Power factor: >0.5

充電時間：≥24小時

- Charge time ≥24hours

充電模式：持續性恒流

Charge mode: trickle re-charging onbattery

應急功率1-10W,輸出電壓DC12-56V,可負載10-50W

Output emergency power 1-10wattage DC15-56V (10-50W)

鋰電池容量：2000mAh, 2200mAh,2600mAh

Battery capacity (LIR) 2000mAh, 2200mAh,2600mAh

充電電流：200mA

Battery Charging Current: 200mA

1-3小時應急時間，或定制應急時間

1-3 hours emergency time, or customized emergency time

應急器外殼最高耐溫70度

70℃

流明：120LM/W

Lumen Factor:120lm/Wattage

應急器和電池均有絕緣加強

-Reinforced insulation between the supply and the battery circuit.

重新連接電池后，應急器可以正常為電池充電

-This unit can recharge the battery normally after reconnecting of battery.

LED指示燈

LED indicator

LED低壓應急電源AC12-36V低壓燈具應急驅動性能特點 輸出電壓：DC12-36V LED低壓應急電源AC12-36V低壓燈具應急驅動技術參數

1.連接AC/DC12-36V主電正極以及驅動輸入正極,可在驅動輸入正極中間增加墻壁開關,作為控制主電照明開關

R： main power and the positive pole of the drive input, and a wall switch can be added to the positive pole of the drive input to control the main power lighting switch

2.連接AC/DC12-36V主電負極以及驅動輸入負極

main power negative pole and drive input negative pole

3.連接LED驅動輸出正極

4.連接LED驅動輸出負極

5.連接LED燈板輸出負極

6.連接LED燈板輸出正極
