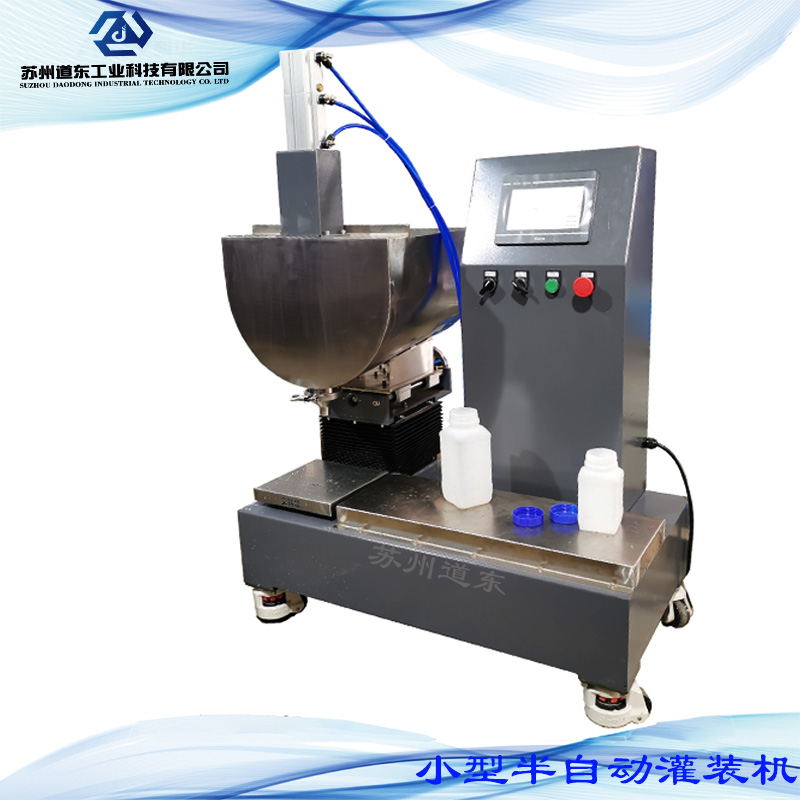

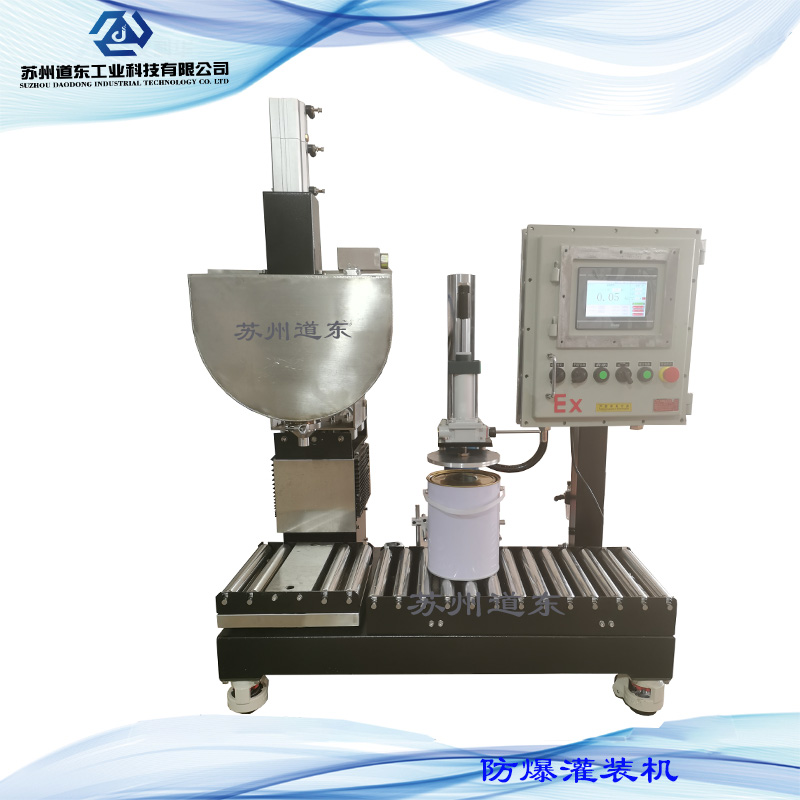

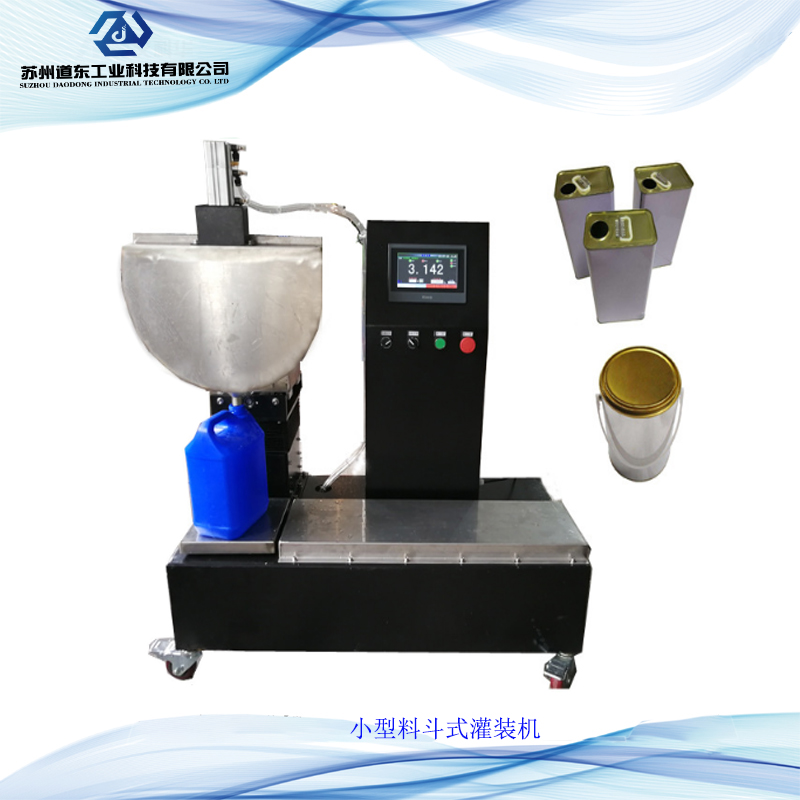

產品展示

技術參數

■ 物料名稱:多種化工液體。

■ 秤臺感量：10g

■ 稱重誤差: ≤±30g

■ 配料速度:2桶/分鐘

■ 控制方式：手動/自動

■ 秤臺尺寸：350*350mm （按適用規格為準）

■ 和物料接觸管路:SUS304不銹鋼及特氟龍/SUS316L

■ 結構材質:碳鋼烤漆/不銹鋼/防爆型

■ 管路壓力：0.2-0.6MPa。

■ 物料接口：DN40法蘭SUS304

■ 氣源接口：用戶提供12mm氣管接頭

■ 使用電源：AC220V/380V/50Hz

■ 使用氣源：0.6-0.8Mpa

■ 使用溫度：0℃-90℃

系統特點及功能/Features

■ 控制系統采用 可編程控制器I/O PLC模塊等高端電氣配件制造，性能可靠、后期維護成本低；
     The control system adopts the high-end electrical parts such as programmable controller I/O PLC module, which has reliable performance and low maintenance cost.

■ 密封及軟連接部分采用特氟龍制造，耐溶劑，耐酸堿，壽命長；

    The sealing and soft connection uses Teflon, which is solvent resistant, acid and alkali resistant and has long service life.

■ 系統采用兩段式大、小料可調灌裝方式，提高了準確度及生產能力；
    The system adopts two-stage adjustable filling mode for the large and small materials, which improves the accuracy and productivity.

■ 目標量自由設定，適應多種重量范圍的定量灌裝；
 The filling quantity can be set freely, which is suitable for quantitative filling in various weight ranges.

■ 全觸摸屏英文動畫操作，全示教模式操作引導、可顯示目標量、灌裝量、桶數、累計量等信息；
 Full Touch Screen  is English Animation Operation, Full Teaching Mode Operation Guidance, Display Target Quantity, Filling Quantity, Bucket Number, Cumulative Quantity and so on.


■ 系統采用全英文向?qū)讲僮鳎洃浌ぷ鹘M參數、及配方。可存儲100組參數。
The system uses all-English  guided operation to memorize working group parameters and formulas. Maximum storage of 100 sets of parameters,.


■ 設備可擴展以太網接口/DP/NET接口，方便后期工廠數據集中控制與集成監控。
 The device can extend the Ethernet interface/DP/NET interface to facilitate centralized control and integrated monitoring of factory data in the later stage.
